Lifecycle Status

IN PRODUCTION (Last Updated: 1 month ago)

Factory Lead Time

25 Weeks

Mount

Chassis Mount, Screw

Mounting Type

Chassis Mount

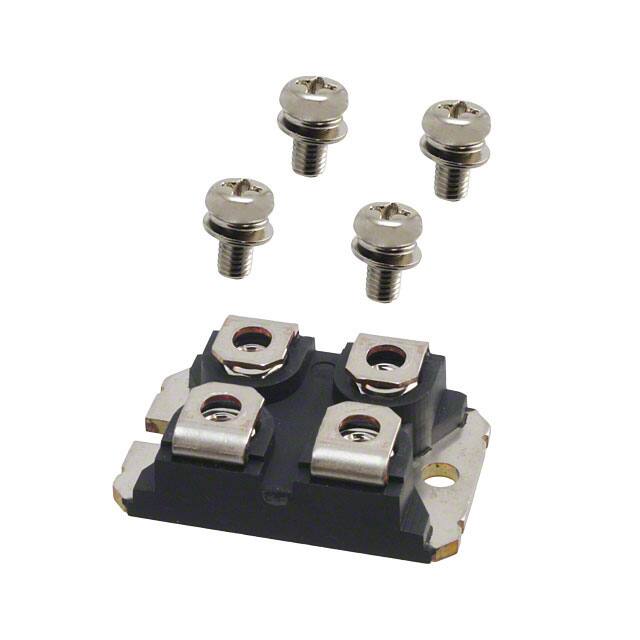

Package / Case

ISOTOP

Number of Pins

4

Weight

30.000004g

Diode Element Material

SILICON

Number of Elements

2

Packaging

Tube

Published

1997

Pbfree Code

no

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Max Operating Temperature

150°C

Min Operating Temperature

-55°C

Applications

HIGH VOLTAGE ULTRA FAST SOFT RECOVERY

Voltage - Rated DC

200V

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Current Rating

120A

Pin Count

4

Element Configuration

Dual

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Schottky

Current - Reverse Leakage @ Vr

2mA @ 200V

Voltage - Forward (Vf) (Max) @ If

950mV @ 100A

Case Connection

ISOLATED

Forward Current

120A

Operating Temperature - Junction

-55°C~175°C

Forward Voltage

890mV

Max Reverse Voltage (DC)

200V

Average Rectified Current

120A

Number of Phases

1

Reverse Recovery Time

70 ns

Peak Reverse Current

200μA

Max Repetitive Reverse Voltage (Vrrm)

200V

Peak Non-Repetitive Surge Current

1kA

Diode Configuration

2 Independent

Max Forward Surge Current (Ifsm)

1kA

Reverse Voltage (DC)

200V

Height

9.6mm

Length

38.2mm

Width

25.4mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
